002440726

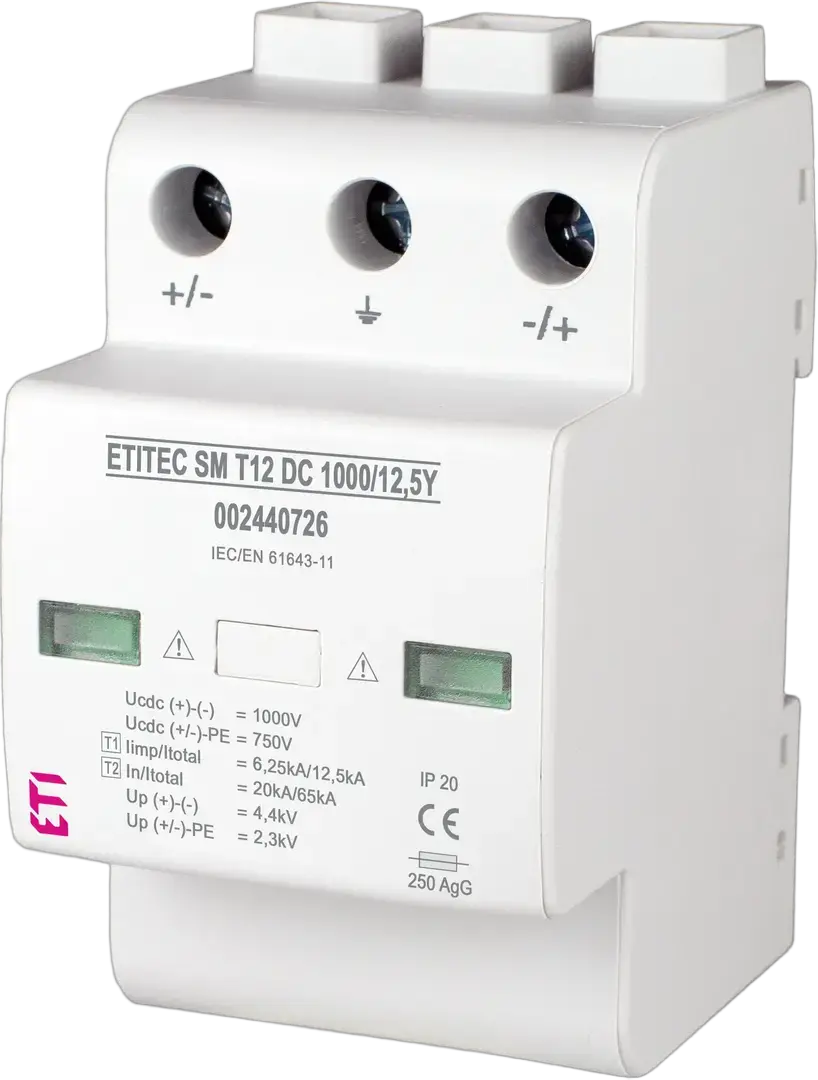

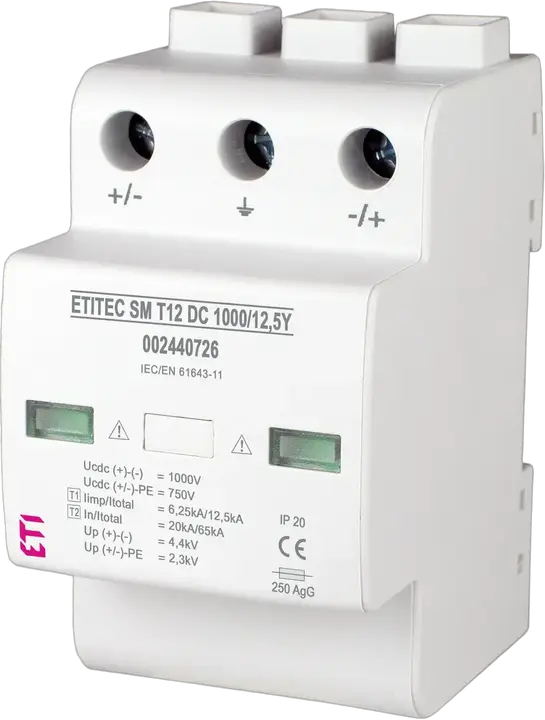

ETITEC SM T12 DC 1000/12,5 Y Surge arrester
- ETI Code:
- 002440726
- Function:
- SPD
- Current type:
- DC
- Rated DC voltage:
- 900 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Catalogue Group:
- ETITEC SM DC
- Installation:
- Home and residental building protection
- Remote signalisation:
- ✗
- IP rating:
- IP20
- Number of modules:
- 3
- Up - Voltage Protection Level:
- 44 kV
- Leakage Current:
- ✗
- Applied Technology:
- MOV, GDT
- Built-in depth:
- 71 mm
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Connectable conductor cross section solid-core:
- 35 mm²
- Uc Continous Operating Voltage DC:
- 1,000 V
- Surge arrester type:
- T1, T2
3 Documents
18 Logistics
Product
- Net weight of the product
- 0.388 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966098
- Basic packaging weight
- 0.452 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 62 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.512 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895966104
- Transport packaging weight
- 2.341 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 1,495 pcs
- Customs tariff
- 85363090
15 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Voltage protection level (DC+/DC- - PE)
- 2.3 kV
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1,000 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Nominal voltage DC
- 900 V
- Lightning impulse current (10/350 µs)
- 6.25 kA
- Specific energy (W/R)
- 9.77 kJ/Ohm
- Number of poles
- 3
- Voltage protection level (DC+ - DC-)
- 4.4 kV
- Signalling at the device
- Optical
- System configuration DC
- ✓
ETIM Classification – Version 9.0
